Overzicht Kabels
1–16 van de 275 producten gevonden
-
10G0.5mm2 YSLY-JZ GREY ECA 300/500V
Conductor Bare copper, Class 5 according to EN 60228
Insulation PVC type TI2
Sheating Material PVC type TM2 or TM5 – Oil Resistant, Grey
Temperature Range -15°C up to +50°C
-
14G0.5mm2 YSLY-JZ GREY ECA 300/500V
Conductor Bare copper, Class 5 according to EN 60228
Insulation PVC type TI2
Sheating Material PVC type TM2 or TM5 – Oil Resistant, Grey
Temperature Range -15°C up to +50°C
-
1×1.5mm2 H07RN-F Black
Conductor Flexible Class 5 bare copper
outer-sheath Rubber
Temperature range Fixed Installation – 25 °C / + 55 °C
nominal-voltage-uo-u 450/750V
UV resistant Yes
CPR class Eca
IEC / EN standard EN 50525-2-21 / IEC 60332-1-2 VDE 0482-332-1-2
-
1×1.5mm2 H07Z1-R Green/Yellow B2CA
Conductor Stranded Class 2 bare copper
outer-sheath LSZH
Temperature range Fixed Installation – 20 °C / + 70 °C
nominal-voltage-uo-u 450/750V
UV resistant No
CPR class B2CA
IEC / EN standard EN 60228 / EN 50363-7 / EN13501-6 /
-

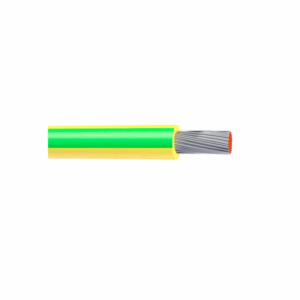

1×10 mm2 H07Z1-K Green/Yellow Tinned and UV resistant B2CA
Conductor Flexible Class 5 Tinned copper
outer-sheath LSZH
Temperature range Fixed Installation – 20 °C / + 70 °C
nominal-voltage-uo-u 450/750V
UV resistant Yes
CPR class B2CA
IEC / EN standard EN50363-7 / EN60332-3-24 / EN60754-1 / EN 61043
-
1x10mm2 (7×1.35) Bare copper
Conductor Bare copper stranded.
UV resistant No
IEC / EN standard EN 7885
-

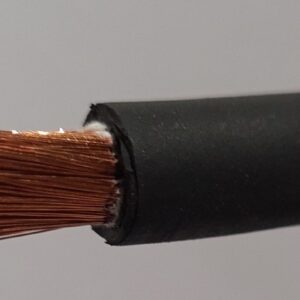

1x10mm2 H01N2-D Black
Conductor Flexible copper conductor
outer-sheath Rubber EM5
Temperature range Fixed Installation – 20 °C / + 85 °C
nominal-voltage-uo-u 100V
UV resistant Yes
IEC / EN standard EN-50525-2-81 / IEC 60332-1-2
-
1x10mm2 H07RN-F Black
Conductor Flexible Class 5 bare copper
outer-sheath Rubber
Temperature range Fixed Installation – 25 °C / + 55 °C
nominal-voltage-uo-u 450/750V
UV resistant Yes
CPR class Eca
IEC / EN standard EN 50525-2-21 / IEC 60332-1-2 VDE 0482-332-1-2
-
1x10mm2 H07V-R Black
Conductor Stranded Class 2 bare copper
outer-sheath PVC
Temperature range Fixed Installation – 5 °C / + 70 °C
nominal-voltage-uo-u 450/750V
UV resistant No
CPR class Eca
IEC / EN standard EN 5025-2-31 / EIC 60332-1-2 VDE 0482-332-1-2
-
1x10mm2 H07V-R Blue
Conductor Stranded Class 2 bare copper
outer-sheath PVC
Temperature range Fixed Installation – 5 °C / + 70 °C
nominal-voltage-uo-u 450/750V
UV resistant No
CPR class Eca
IEC / EN standard EN 5025-2-31 / EIC 60332-1-2 VDE 0482-332-1-3
-
1x10mm2 H07Z1-R Green/Yellow B2CA
Conductor Stranded Class 2 bare copper
outer-sheath LSZH
Temperature range Fixed Installation – 20 °C / + 70 °C
nominal-voltage-uo-u 450/750V
UV resistant No
CPR class B2CA
IEC / EN standard EN 60228 / EN 50363-7 / EN13501-6 /
-
1x120mm2 H01N2-D Black
Conductor Flexible copper conductor
outer-sheath Rubber EM5
Temperature range Fixed Installation – 20 °C / + 85 °C
nominal-voltage-uo-u 100V
UV resistant Yes
IEC / EN standard EN-50525-2-81 / IEC 60332-1-2
-
1x120mm2 H07RN-F Black
Conductor Flexible Class 5 bare copper
outer-sheath Rubber
Temperature range Fixed Installation – 25 °C / + 55 °C
nominal-voltage-uo-u 450/750V
UV resistant Yes
CPR class Eca
IEC / EN standard EN 50525-2-21 / IEC 60332-1-2 VDE 0482-332-1-2
-
1x120mm2 H07Z1-R Green/Yellow B2CA
Conductor Stranded Class 2 bare copper
outer-sheath LSZH
Temperature range Fixed Installation – 20 °C / + 70 °C
nominal-voltage-uo-u 450/750V
UV resistant No
CPR class B2CA
IEC / EN standard EN 60228 / EN 50363-7 / EN13501-6 /
-

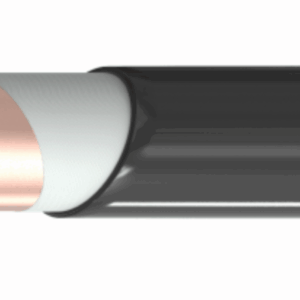

1×150/25mm2 (N)A2XS(F)2Y BLACK 12/20KV
Conductor Circular Stranded Compacted Aluminium (Class 2)
Conductor Screen Extruded Thermosetting Semi-Conducting Compound
Insulation XLPE
Insulation Screen Extruded Thermosetting Semi-conducting Compound (Bonded)
Metallic Screen Copper Tape Screen (Open Helix)
Water Blocking Tape Non-conductive Water Blocking Tape
Outer Sheath PE, Black
-
1x150mm2 H01N2-D Black
Conductor Flexible copper conductor
outer-sheath Rubber EM5
Temperature range Fixed Installation – 20 °C / + 85 °C
nominal-voltage-uo-u 100V
UV resistant Yes
IEC / EN standard EN-50525-2-81 / IEC 60332-1-2
